Booth Seating Manufacturer: Contract-Grade Banquettes for Global Hospitality

Brand Snapshot (Authority · Trust · Delivery)

Zhongjing® Furniture (est. 2016) is a contract booth seating manufacturer delivering single row, double row, U-shaped and lounge booths—plus tables and chairs—to cafés, QSRs, hotels, canteens, and malls worldwide. We integrate design → prototyping → smart manufacturing → ISO QC → export packing → global shipping → after-sales, helping partners scale from first store to 100-store with consistent specs and OEM/ODM labeling.

• Materials: HPL/fireproof board, compact laminate, solid wood/veneer, high-density rebound foam, wear-resistant leather/fabric

• Engineering: CNC precision, threaded inserts, metal kick-guards, moisture-sealed bases

• Global enablement: décor/finish code standardization, barcode kits, consolidated containers

Why Booth Seating Wins (P&L + Brand Impact)

• Seat density & flow: Perimeter walls and back-to-back spines unlock capacity without crowding.

• Dwell time & ticket size: Ergonomic back angles and soft touch points enhance comfort.

• Acoustic comfort: High backs reduce noise in open halls and food courts.

• Brand storytelling: Stitching, silhouette, trims, and colorways build a recognizable identity across cities.

Product Range (What We Manufacture)

• Single Row (Wall Banquette): Narrow rooms, perimeter runs, end-cap radii available

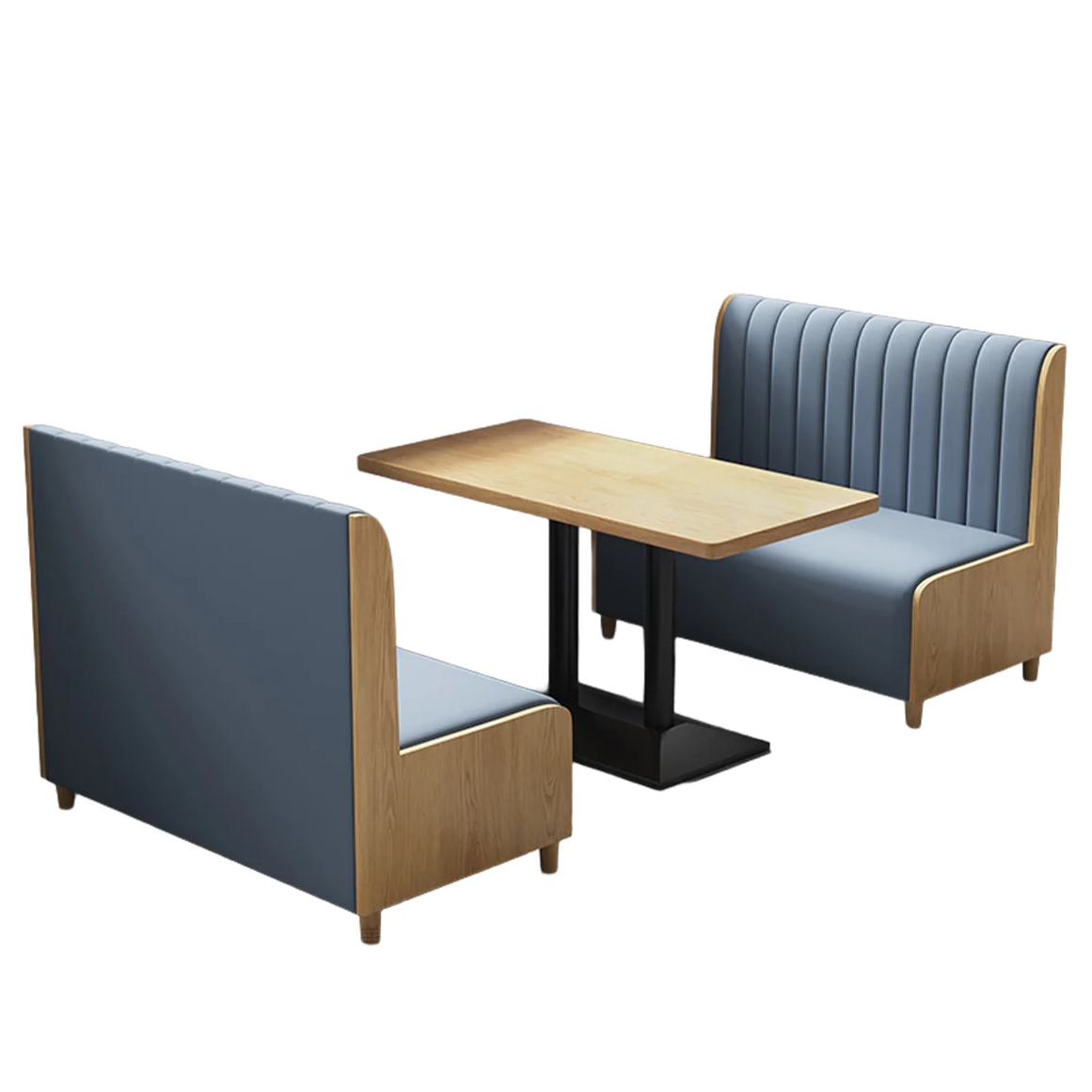

• Double Row (Back-to-Back): Center spines with predictable server routes

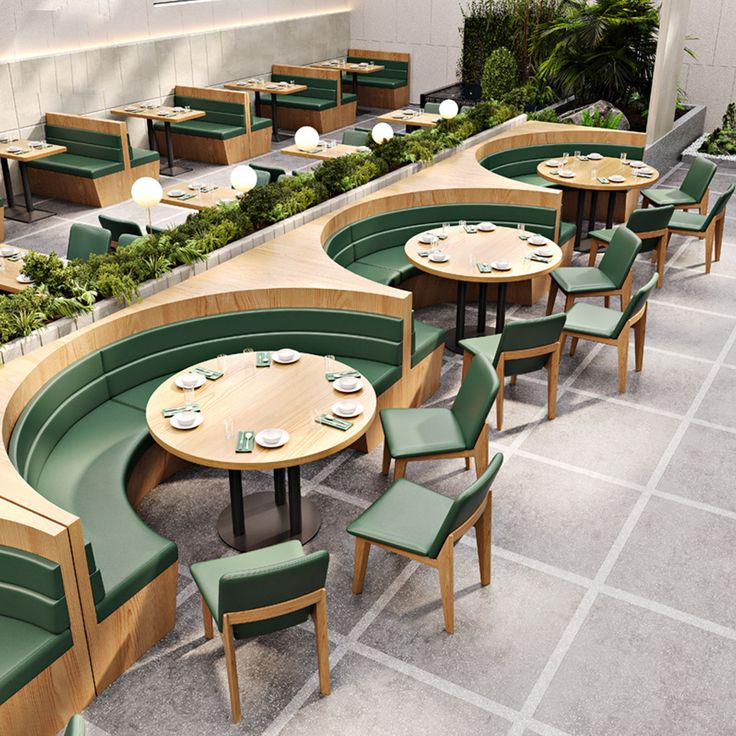

• U-Shaped / Corner Booths: Family/groups; activates dead corners and niches

• Lounge Booths & Pods: Lower seat height, plush foams, acoustic wings

• Accessories: Power/USB modules, bag hooks, QR/menu pockets, crumb rails, logo emboss

Fast Specs (Inches • Millimeters)

• Seat height: 17–18 in (430–460 mm) dining · lounge 16–17.5 in (405–445 mm)

• Usable seat depth: 16–18 in (405–455 mm) dining · lounge 18–22 in (455–560 mm)

• Back angle: 100–105° (dining) · 105–110° (lounge)

• Overall depth: 24–27 in (610–685 mm) per side（double row ≈ 48–54 in / 1220–1370 mm）

• Table height: 29–30 in (740–760 mm) · Knee clearance: ≥27 in (685 mm)

Ops tip: Pair 24"×30" (610×760 mm) 2-tops along runs; merge into 48"×30" (1220×760 mm) 4-tops during peaks.

Construction & Materials (Durability × Hygiene × Comfort)

• Frame: Solid hardwood + engineered panels; braced corners; threaded inserts at fix points

• Foam: High-density rebound sponge (seat 45–55 kg/m³) with optional dual-layer comfort

• Upholstery: Wear-resistant commercial leather/fabric (abrasion, stain-guard, colorfast)

• Kick base & plinth: HPL/compact laminate with optional metal kick-plates

• Tabletops: HPL/compact/veneer/solid wood with sealed edges; rounded corners for safe ingress

• Power: Hidden USB/AC; wireless charging on request; certified components with service access panels

• Fire & docs: Fire-safe options; material data sheets; care/cleaning guides




Layout & Accessibility (Global-Friendly)

• Main aisle: 36–48 in (915–1220 mm)

• Table edge → seat front: 16–18 in (405–455 mm) comfort zone

• Back-to-back (tabletop to tabletop): 18–24 in (455–610 mm)

• Accessible dining: At least one route with 36 in (915 mm) clear path; tabletop 28–34 in high with 27 in knee clearance

Customization (Brand Power & Rollout Consistency)

• Silhouette: straight, curved, U, pods; radius ends and corner caps

• Back heights: standard, mid, high-back acoustic with wing ends

• Stitching: vertical fluting, channel tufting, diamond quilting, contrast piping

• Finishes: unified décor/finish codes; tone-on-tone logo emboss; brass/metal trims

• Kits: SKU labels, barcode location tags, install drawings for franchise speed

QC & Documentation (What to Request)

• Upholstery tension tolerance & stitch density (esp. on curves)

• Foam density & compression-set data; seat load/tilt stability tests

• Finish swatch match (color/sheens); HPL edge-seal verification

• Packing lists, install drawings, care/cleaning guides, warranty terms

Sourcing Workflow (Frictionless Global Rollouts)

1. Brief & seat targets — cover mix, dwell time, brand palette

2. Layout & VR — aisle widths, run lengths, merge strategy for 2-tops→4-tops

3. Material board — leather/fabric, laminate décor, foam firmness, trims

4. Prototype — sample module or on-model photos/video for sign-off

5. Spec lock — SKUs, labels, barcodes, franchise kits

6. Production & ISO QC — dimension, upholstery, finish & stability checks

7. Export packing & shipping — edge guards, moisture barrier, consolidated containers

8. After-sales — care guide, spare glides, replacement programs

Pricing Levers (Hit Target Without Losing Quality)

• Geometry（curves/radii, high backs, deep tufting）

• Upholstery grade（abrasion rating, leather type, custom colors）

• Foam system（single vs. dual-layer; acoustic padding）

• Base/plinth protection（metal guards, outdoor coatings）

• Volume & rollout cadence（pilot → batch → chain）

• Add-ons（power/USB, trims, logo emboss）

Share your budget per seat and expected lifecycle (years)—we’ll engineer a spec to meet both.

Conversion Block — Get a Fast Quote (48-Hour Spec Pack)

Send: floor plan, store count, booth type (single/double/U/lounge), back height (std/mid/high), finish preferences, opening date, incoterms.
Receive: layout suggestion + material board + unit pricing tuned to your brand.

Zhongjing® Furniture — Your Global Booth Seating Manufacturer
Email: felix@nazj.com · Website: www.omzj.com

FAQs

Q1: Are booths durable enough for heavy QSR traffic?
Yes—spec wear-resistant upholstery, sealed wipe-zones, and high-density foam under ISO QC.

Q2: Can we integrate USB/power without visible cabling?
Absolutely—hidden modules with certified components and service access panels.

Q3: How do we choose seat firmness?
High-turn venues benefit from firmer foam; premium casual favors dual-layer comfort.

Q4: Will colors match across regions?
We standardize décor and upholstery codes and provide local equivalents for global rollouts.
