Zhongjing® Furniture (est. 2016) manufactures contract-grade double row booths, single/wall banquettes, U-shapes, dining tables, and chairs for cafés, QSRs, hotels, corporate canteens, and malls. We integrate design → prototyping → smart manufacturing → ISO QC → export packing → global shipping → after-sales, enabling brands to scale from first store to 100-store rollout with consistent specs and OEM/ODM options.

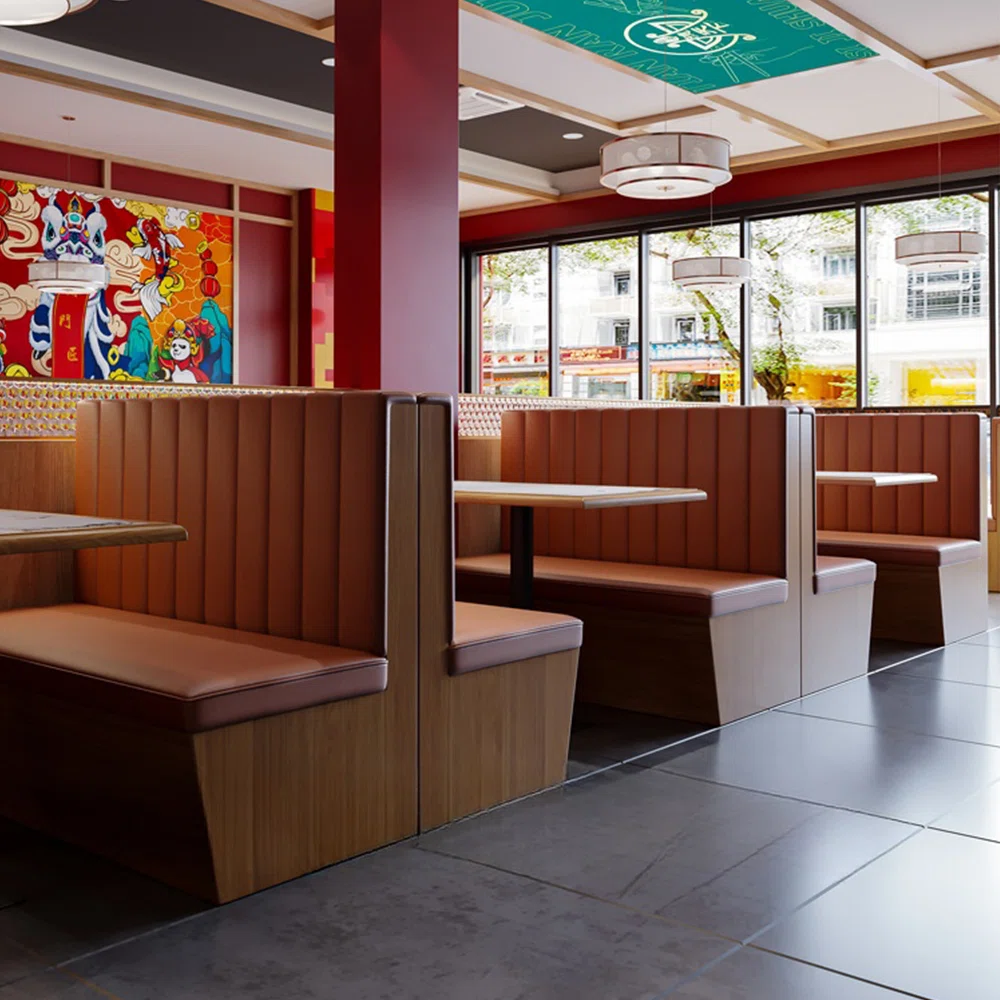

A double row booth—two booths placed back-to-back with an aisle on either side—maximizes seat density without sacrificing comfort or sightlines.
High seat count per meter/foot: Ideal for main aisles and center spines.
Operational efficiency: Predictable server routes and uniform table spacing.
Acoustic comfort: High backs reduce ambient noise in open halls.
Brand expression: Stitching, colors, trims, and silhouettes carry your identity across locations.

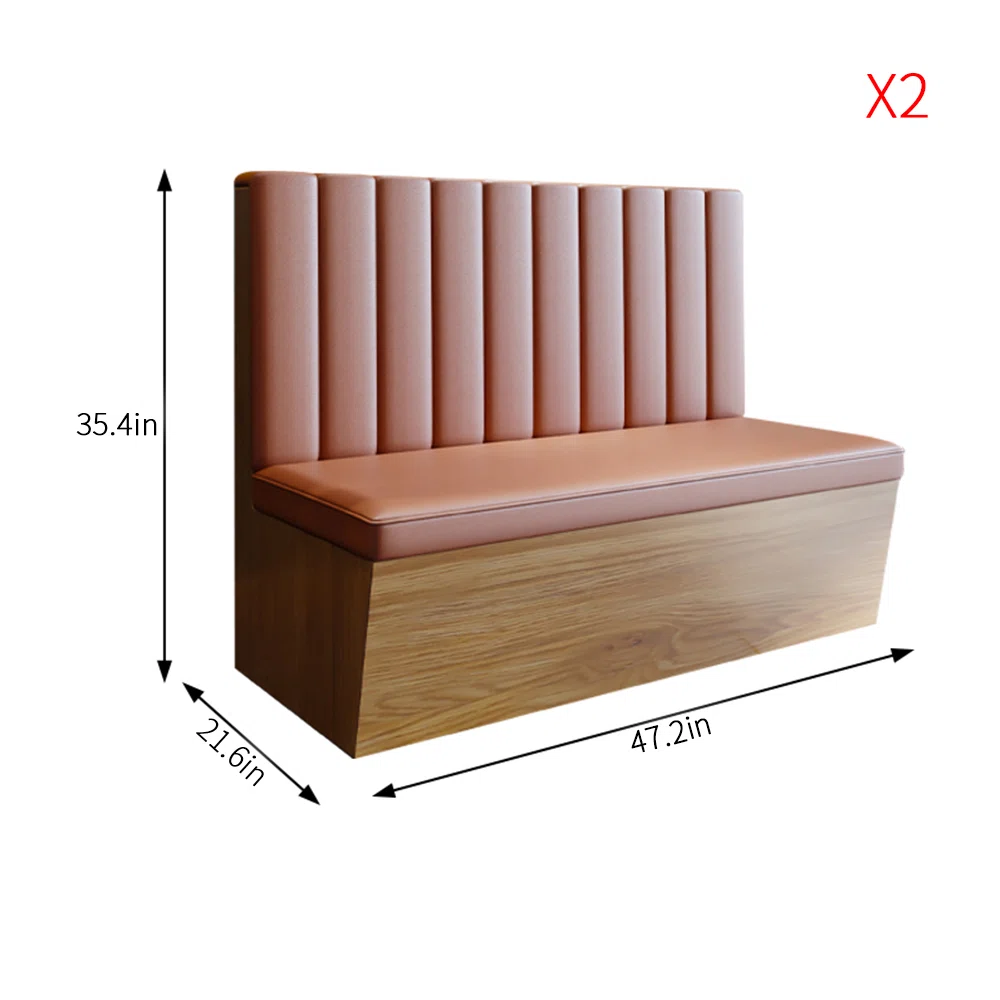

Seat height: 17–18 in (430–460 mm)
Usable seat depth: 16–18 in (405–455 mm)
Back angle: 100–105° relaxed dining posture
Overall depth per side: 24–27 in (610–685 mm)
Overall depth back-to-back: ≈ 48–54 in (1220–1370 mm)
Table height: 29–30 in (740–760 mm)
Knee clearance: ≥27 in (685 mm)
Ops tip: Run 24"×30" (610×760 mm) 2-tops along the spine; merge pairs into 48"×30" (1220×760 mm) 4-tops during peaks.
Main aisle (each side): 36–48 in (915–1220 mm) for smooth service.
Table edge ↔ table edge (across aisle): 18–24 in (455–610 mm) minimum.
Table edge ↔ seat front: 16–18 in (405–455 mm) comfort zone.
Accessible dining: At least one route with 36 in (915 mm) clear path; tabletop 28–34 in (710–865 mm) high with 27 in (685 mm) knee clearance.
Frame: Solid hardwood + engineered panels; braced corners; threaded inserts at fix points.
Foam: High-density rebound sponge (seat 45–55 kg/m³ typical); optional dual-layer for premium comfort.

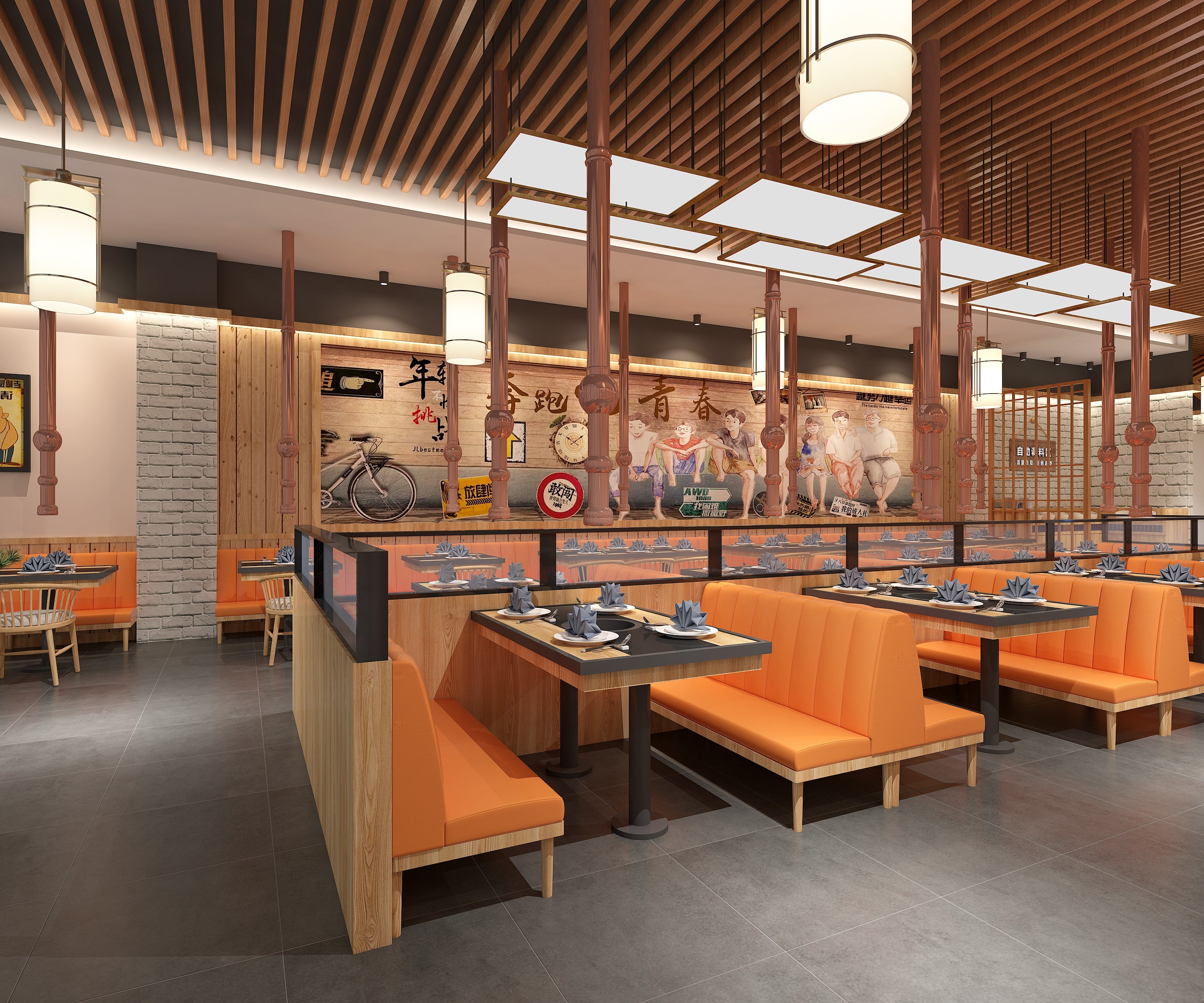

Upholstery: Wear-resistant commercial leather/fabric (abrasion, stain-guard, colorfast).
Kick base & plinth: HPL/compact laminate with metal kick-guards to resist scuffs.
Tabletops: HPL/compact laminate/veneer/solid wood with sealed edges; crumb rails optional.
Power: Hidden USB/AC with certified components and service access panels.
Fire & docs: Fire-safe material options; provide material data sheets + cleaning guides.
Back height: standard / mid / high-back acoustic for noise control.
Stitching: vertical fluting, channel tufting, diamond quilting, contrast piping.
Radii & end caps: softened outer corners for safe flow; logo emboss or metal trims.
Accessories: bag hooks, menu pockets, anti-tilt anchoring, removable seat pans.
Daily: Neutral pH cleaner + microfiber; sanitize top rails and table edges.
Weekly: Inspect seams, base scuffs, anchoring, and power modules.
Quarterly: Condition leather or deep-clean fabric per spec; re-tension fixings.
Avoid: Abrasives/solvents on finishes; standing moisture at seams.
Upholstery tension tolerance & stitch density
Foam density & compression-set data; seat load/tilt tests
Finish swatch match (color/sheens); HPL edge-seal verification
Barcode kits (SKU/location), install drawings, packing lists, care guides
Geometry: High backs, deep tufting, curves/radii = more labor.
Upholstery grade: Abrasion rating, leather type, custom colours.
Foam system: Single vs. dual-layer; acoustic padding.
Volume & rollout: Standardize modules for multi-store economies.
Add-ons: Power/USB, kick-plates, logo emboss, metal trims.
Share your budget per seat and expected lifecycle (years)—we’ll engineer a spec to meet both.
Brief & seat targets — cover mix, brand palette, target dwell time
Layout & VR — aisle widths, run lengths, merge strategy for 2-tops→4-tops
Material board — leather/fabric, laminate décor, foam firmness, trims
Prototype — sample module or on-model photos/video for sign-off
Spec lock — SKU, labels, barcodes, franchise kits
Production & ISO QC — dimensions, upholstery tension, seam QC, stability
Export packing & shipping — edge guards, moisture barrier, consolidated containers
After-sales — care guide, spare glides, warranty, replacement programs
Send: floor plan, store count, booth height (standard/mid/high), finish preferences, opening date, incoterms.
Receive: layout suggestion + material board + unit pricing tuned to your brand.
Zhongjing® Furniture — Contract Seating Specialists
Email: felix@nazj.com | Website: www.omzj.com
Q1: Are double row booths suitable for heavy QSR traffic?
Yes—when specified with wear-resistant upholstery, sealed wipe-zones, and high-density foam under ISO QC.
Q2: Can we add USB/power without visible cabling?
Absolutely—hidden modules with certified components and service access panels.
Q3: How do we select firmness for different concepts?
High-turn venues prefer firmer foam; premium casual favors dual-layer comfort.
Q4: Will finishes stay consistent across countries?
Yes—standardized décor and upholstery codes plus local equivalents ensure global consistency.
