Is every square foot of your restaurant working as hard as you are? For many owners, especially those with long, narrow dining rooms, that empty wall space feels like a missed opportunity for profit. If you're searching for smart restaurant seating floor plan ideas without the cost of a full remodel, the solution is simpler than you think: single row restaurant booths.
Often called a "wall bench," this is simply one continuous line of booth seating installed flush against a wall, paired with movable tables and chairs on the open side. In practice, this layout immediately reclaims valuable floor space because you no longer need room for guests to pull out chairs on one side. This makes it one of the most efficient space-saving dining booth designs available.
The benefits, however, go far beyond just adding seats without the squeeze. This arrangement creates a more organized, upscale atmosphere and establishes clear, wide pathways for staff and guests to move freely. By transforming an underused wall into a profitable and comfortable seating area, you can improve both your operational flow and your customer’s dining experience.
Every restaurant owner knows that a cramped floor plan is bad for business. When staff and guests are constantly squeezing past each other, service slows down and the atmosphere suffers. The problem often lies not with the tables themselves, but with the space needed for the chairs. A standard four-person table requires about 36 inches of clearance space behind each chair, just so a guest can comfortably pull it out and sit down. This buffer zone, while necessary, consumes a massive amount of your valuable floor space.
This is where the simple geometry of a single row booth makes a dramatic difference. Because the booth is fixed against the wall, it eliminates the need for any clearance space on that side. By simply swapping a table and two chairs for a booth, you instantly reclaim at least 18 to 24 inches of usable depth. That’s nearly two feet of floor space returned to your layout for every single table along the wall.
Suddenly, that reclaimed space becomes a powerful asset. For some restaurants, it means creating wider, safer service aisles that improve staff efficiency and guest comfort. For others, that extra two feet, multiplied down a long wall, provides just enough room to reconfigure the dining area and increase your overall seating capacity. You’re not just adding comfort; you're fundamentally changing how to maximize restaurant seating capacity in your existing footprint.

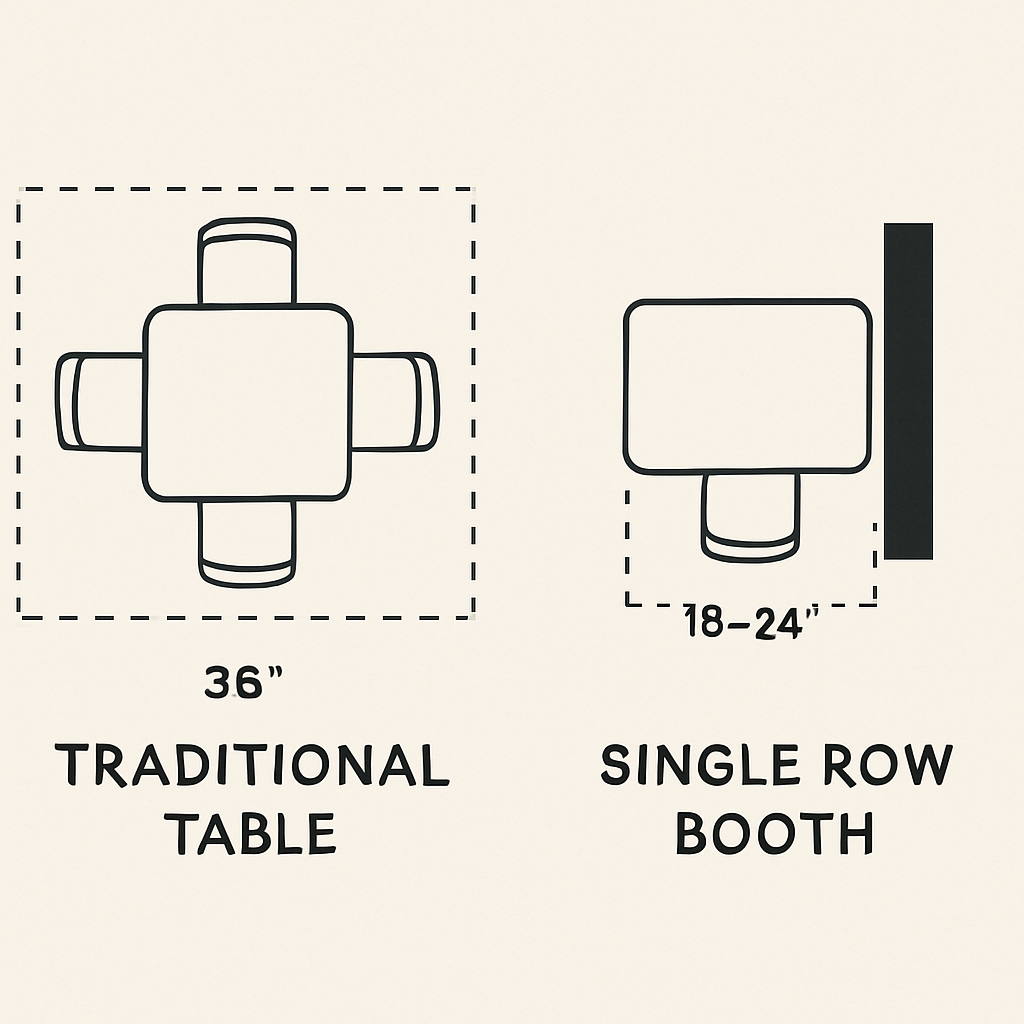

A simple, clean graphic showing two layouts side-by-side. On the left, a "Traditional Table" with chairs on all sides, showing a wide 36" clearance box around it. On the right, a "Single Row Booth" setup, with the booth against a wall and only a 18-24" clearance needed for the chairs on the opposite side, highlighting the saved space
Knowing that a single row booth saves space is one thing, but planning your layout requires real numbers. When it comes to length, the industry standard is simple: budget 24 inches of booth per person. For a four-person table with two guests on the banquette, you'll need a 48-inch (4-foot) section of booth seating. This calculation is the starting point for all your restaurant seating floor plan ideas.
Next is depth—the distance from the wall out into your dining room. This is a simple sum of three parts: the booth seat, the table, and the space for the chairs opposite. The standard restaurant banquette seating dimensions for the booth seat itself are typically between 22 and 24 inches deep. This provides ample support for a guest’s back and legs without feeling oversized.
The essential dimensions for planning are straightforward:
Quick Dimension Checklist
Booth Length Per Person: 24 inches
Booth Seat Depth: 22–24 inches
Table Width (2-person): 24 inches
Table Width (4-person): 30 inches
Chair Pull-Back Space: 18–24 inches
For a typical 4-person setup, the total depth from the wall would be the booth depth (24"), the table width (30"), and the chair pull-back space (24"), for a total of about 78 inches (6.5 feet). Compared to the 10+ feet often needed for a freestanding table, the efficiency is clear. This smart use of space doesn't just improve flow; it raises the question of which seating option actually earns you more money.
When it comes to booth vs. table seating profitability, the answer isn’t one-sided; it’s a balance between guest spending and table turnover. Booths often encourage guests to settle in and stay longer. That comfort can translate directly into a higher average check, as relaxed diners are more likely to order another round of drinks or a dessert. For restaurants aiming for a leisurely, high-value dining experience, the plush comfort of a booth is a clear financial asset that elevates the guest experience.
However, the real power of single row booths lies in their flexibility, which drives turnover. By pairing a wall bench with movable tables and chairs, you create an adaptable zone. A server can easily slide two tables together for an unexpected party of eight, or separate them for couples during a dinner rush. This ability to instantly reconfigure your floor plan reduces wait times and allows you to seat more parties on a busy night, directly boosting your total covers.
Ultimately, the most significant gain comes from maximizing your restaurant seating capacity. The space saved by a single row booth often allows you to fit at least one extra table into your floor plan. For example, if one additional four-top with a $60 average check turns over just three times on a Friday night, that’s $180 in extra revenue. Over a month of weekends, that single table could add over $1,400 to your bottom line. But this earning potential only lasts if your seating can handle the traffic, which makes your material choice critical.
Choosing your booth’s material comes down to a classic battle: practicality versus atmosphere. Commercial-grade vinyl is the undisputed champion of durability and easy cleaning. Spills, grease, and crumbs wipe away in seconds, making it the workhorse for a fast-paced family diner, a bustling cafe, or any high-volume spot. Fabric, on the other hand, offers a richer texture and a cozier, more upscale feel perfect for a quiet wine bar or an intimate dinner service. The right choice depends entirely on the experience you want to create and the wear and tear you anticipate.
Whether you lean towards the easy maintenance of vinyl or the cozy appeal of fabric, the most important factor is ensuring it’s truly commercial-grade. The upholstery on a home sofa might be used a few hours a day, but a restaurant booth endures constant sliding, spills, and cleaning for 12+ hours straight. Durable restaurant booth materials are specifically engineered and tested to withstand this relentless use without tearing, fading, or cracking after just a few months.
To gauge that durability, there's one key number to ask any supplier about: the Double Rub Count. This is a standardized test where a machine rubs the material back and forth to simulate years of use in a short amount of time. For a typical restaurant environment, you should be looking for a rating of at least 100,000 double rubs. A higher number means a longer life for your investment, ensuring your booths look great long after the grand opening.
A clear, side-by-side photo. Left: A bright, easy-to-clean red vinyl booth in a bustling family diner. Right: A sophisticated, textured grey fabric banquette in a quiet, upscale cafe
Once you’ve settled on the perfect look for your custom wall bench, two small details can make a huge difference in your day-to-day operations. The first is aisle space. Your floor plan must include clear pathways that are at least 36 inches wide to ensure ADA compliance for restaurant seating. This isn't just a suggestion; it’s a requirement that ensures accessibility for all guests and helps you avoid costly fines or redesigns down the line.
On a smaller but equally practical note, ask your manufacturer about adding a "crumb strip." This is a simple, inexpensive piece of vinyl that seals the tiny gap between the back of the booth and the wall. Without it, that space becomes a magnet for fallen fries, sugar packets, and crumbs, forcing you into difficult deep cleaning. The crumb strip completely eliminates this problem, saving your staff valuable time and effort every single day.
Both of these considerations—one for legal compliance, the other for easy restaurant booth cleaning and maintenance—highlight the same core principle: planning for the realities of running a restaurant before you buy is key. Thinking through these details now prevents major headaches later and ensures your new seating is a smart, long-term investment.
That empty wall in your dining room is a powerful opportunity to improve your floor plan, increase revenue, and elevate your guests' experience. Understanding how a custom wall bench for a cafe can solve real business problems is the first step. The path from idea to installation is clearer than you think.
Here is a straightforward action plan to get started:
Your Action Plan:
Measure Your Space: Use the dimensions in this guide to map out how many tables can fit along your target wall.
Define Your Needs: Decide between vinyl (durability) and fabric (atmosphere) based on your restaurant's concept.
Talk to a Supplier: Ask for commercial-grade materials, specify the dimensions you need, and don't forget to request a crumb strip.
With this information, you are equipped to make strategic decisions. You're ready to have a confident conversation with a supplier, not just about buying furniture, but about building a more profitable and welcoming space.
