Zhongjing® Furniture (est. 2016) manufactures contract-grade U-shaped restaurant booths, single/double row banquettes, tables, and dining chairs. We integrate design → prototyping → smart manufacturing → ISO QC → export packing → global shipping → after-sales, helping brands scale from first store to 100-store rollout with consistent specs and OEM/ODM labeling.

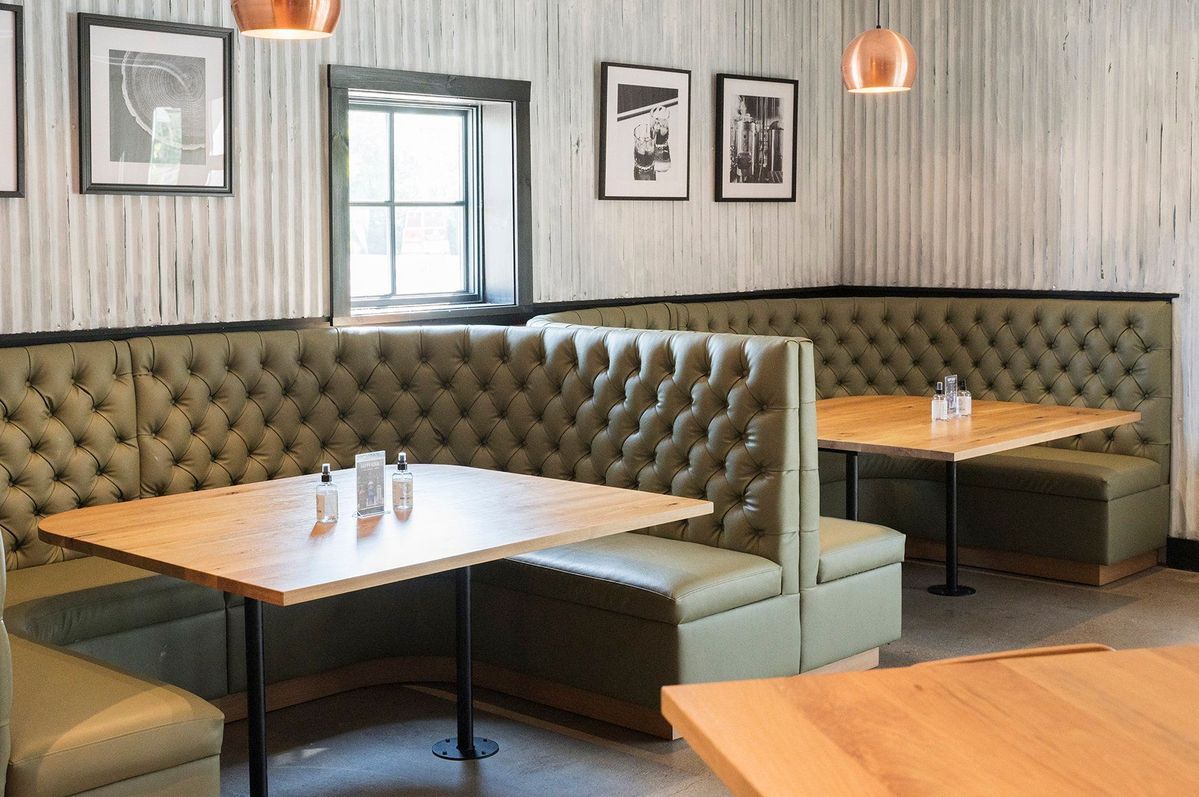

Max group revenue: Seats 4–8 in a cozy, photogenic focal zone.
Activate corners & niches: Wraps around windows/columns to unlock capacity.
Acoustic comfort: Continuous backrest with optional high-back acoustic design.
Brand storytelling: Curves, stitching, color, and trims amplify identity across regions.
Seat height: 17–18 in (430–460 mm)
Usable seat depth: 16–18 in (405–455 mm)
Back angle: 100–105° relaxed dining posture
Typical U envelope (outer): 72–96 in (1830–2440 mm) wide × 48–72 in (1220–1830 mm) deep
Table height: 29–30 in (740–760 mm)
Knee clearance: ≥27 in (685 mm)
Common table pairings
4–6 pax: 36"×36" (915×915 mm) square or Ø42" (Ø1065 mm) round on heavy pedestal
6–8 pax: 30"×60" (760×1525 mm) rectangle or Ø48" (Ø1220 mm) round on heavy disc / dual pedestal
Ops tip: Keep 16–18 in (405–455 mm) from seat front to table edge for comfy ingress/egress.
Frame: Solid hardwood + engineered panels; braced corners; threaded inserts at fix points.
Foam: High-density rebound sponge (seat 45–55 kg/m³ typical); dual-layer comfort optional.
Upholstery: Wear-resistant leather/fabric (abrasion, stain-guard, colorfast); segmented foam for smooth curves on tight radii.
Kick base & plinth: HPL/compact laminate; optional metal kick-guards for scuff zones.
Tabletops: HPL/compact laminate/veneer/solid wood with sealed edges; rounded corners recommended.
Power: Hidden USB/AC modules with certified components and service access panels.
Fire & docs: Fire-safe material options; material data sheets + care guides on hand.
Main aisle near the U opening: 42–48 in (1065–1220 mm)
Edge-to-edge between adjacent tables: 18–24 in (455–610 mm)
Accessible provision: At least one compliant dining position (top 28–34 in high with 27 in knee clearance) along a clear route.
Back heights: standard / mid / high-back acoustic
Stitching: vertical fluting, channel tufting, diamond quilting, contrast piping
Radii & terminations: soft radius ends; logo emboss or metal trims at corners
Accessories: bag hooks, menu pockets, crumb rail, anti-tilt anchoring, removable seat pans
Daily: Neutral pH cleaner + microfiber; sanitize top rails, table edges, power covers.
Weekly: Inspect seams, plinth scuffs, anchoring, and modules.
Quarterly: Condition leather or deep-clean fabric; re-tension fixings.
Avoid: Abrasives/solvents; standing moisture at seams or base.
Upholstery tension tolerance & stitch density on curves
Foam density & compression-set data; seat load/tilt stability tests
Finish swatch match (color/sheens) and HPL edge-seal verification
Barcode kits (SKU/location), install drawings, packing lists, care guides
Geometry: Curves, deep tufting, high backs increase labor/time
Upholstery grade: Abrasion rating, leather type, custom colors
Foam system: Single vs. dual-layer; acoustic padding
Volume & rollout: Standardized modules unlock economies
Add-ons: Power/USB, kick-plates, logo emboss, metal trims
Share your budget per seat and expected lifecycle (years)—we’ll engineer a spec to meet both.
Brief & seat targets — party size mix, brand palette, target dwell time
Layout & VR — aisle widths, U openings, table type/size, ingress angles
Material board — leather/fabric, laminate décor, foam firmness, trims
Prototype — curved sample or on-model photos/video for sign-off
Spec lock — SKU, labels, barcodes, franchise kits
Production & ISO QC — dimensions, seam QC, curve consistency, stability
Export packing & shipping — edge guards, moisture barrier, consolidated containers
After-sales — care guide, spare glides, warranty, replacement programs
Send: floor plan, store count, U size (outer width/depth), back height (std/mid/high), finish preferences, opening date, incoterms.
Receive: layout suggestion + material board + unit pricing tuned to your brand.
Zhongjing® Furniture — Contract Seating Specialists
Email: felix@nazj.com | Website: www.omzj.com
Q1: Are U-shaped booths efficient for small restaurants?
Yes—U booths activate corners/niches to increase seat count without blocking circulation.
Q2: Can we add USB/power without visible cabling?
Absolutely—hidden modules with certified components and service access panels.
Q3: What table works best with a U-shaped booth?
For 4–6 pax, choose 36"×36" or Ø42"; for 6–8 pax, 30"×60" or Ø48" with heavy pedestals.
Q4: How do we keep curves looking clean over time?
Specify segmented foam for tight radii, high-abrasion upholstery, sealed wipe-zones, and a quarterly check.
