Designing a restaurant floor plan presents a constant challenge. You must balance maximum seating density against an exceptional guest experience. Flat linear banquettes pack diners in but often feel generic and loud. You need specialized pieces to anchor the room visually and acoustically. Semi-Circular Restaurant Booths solve this by acting as distinct architectural anchor points. They span a full 180 degrees, instantly delivering high-privacy, premium seating for larger parties. This guide provides operators and designers with exact dimensions, capacity limits, and spatial requirements. You will learn how to evaluate if these curved setups align with your floor plan. We will cover structural anatomy, essential sizing rules, layout tactics, and compliance standards. By the end, you will know exactly how to integrate these booths to maximize your return on investment.
Footprint: Semi-circular booths require significantly more square footage per diner than linear banquettes, making them strategic accent pieces rather than bulk seating.
Capacity Base: A standard 48-inch radius semi-circular booth comfortably seats 4 adults, while a 60-inch radius seats up to 6.
Table Pairing: They necessitate pedestal-base round or D-shaped tables; four-legged tables obstruct guest entry and exit.
ROI Impact: When positioned correctly, these booths increase perceived privacy, often leading to longer dwell times and higher check averages for larger parties.

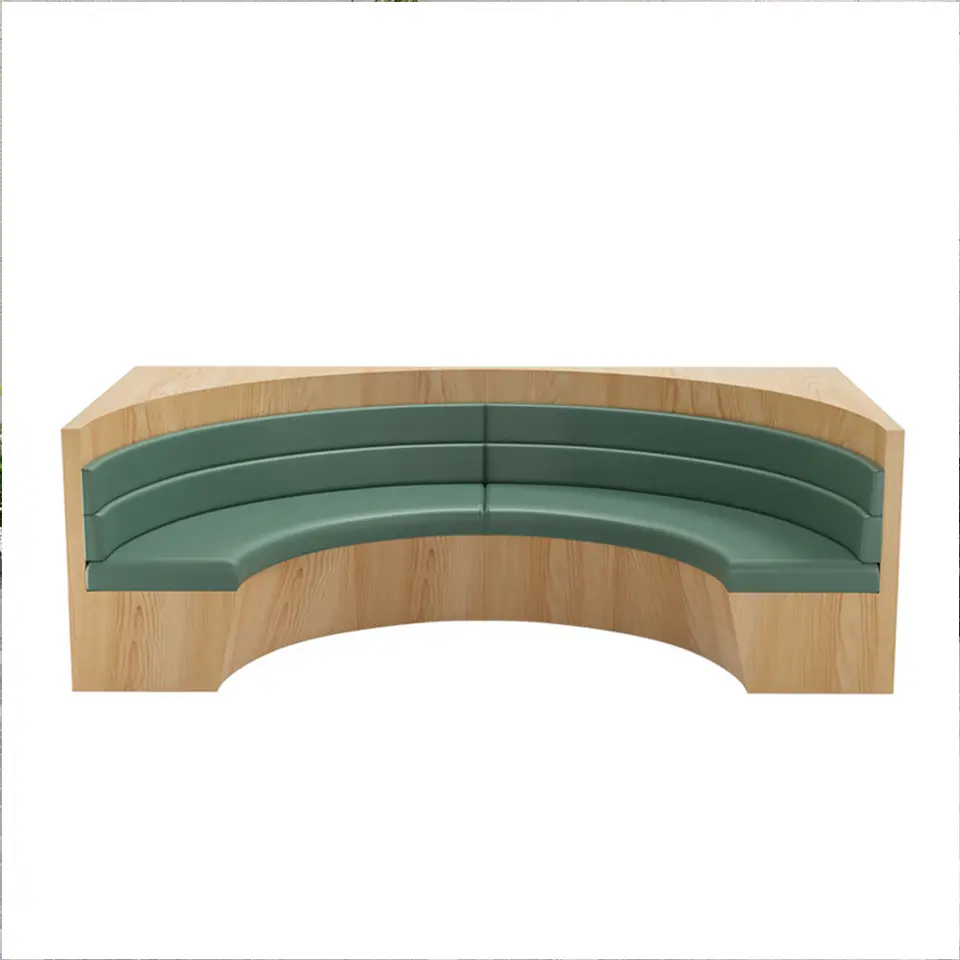

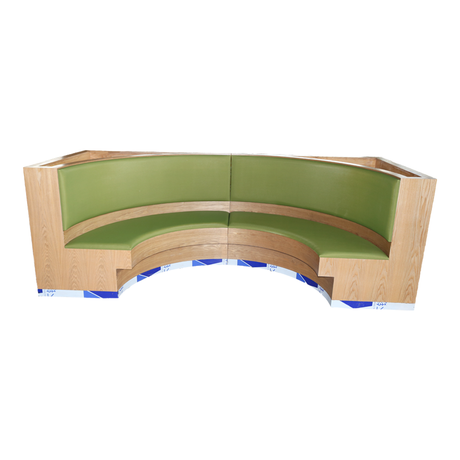

Understanding the exact physical structure of these units prevents costly procurement mistakes. First, we must establish a core definition. A true semi-circular booth spans exactly 180 degrees. It forms a perfect half-moon shape. You must differentiate this from a 3/4 circle. A 3/4 circle wraps too far around the table. It physically traps diners inside. You must also differentiate it from a standard U-shape booth. U-shapes feature straight benches joined by 90-degree internal corners. A true semi-circle uses one continuous, sweeping curve.
When ordering Semi-Circular Commercial Restaurant Booths, you will encounter specific structural terminology. Knowing these terms ensures you specify the right options for daily operations.
Kick Base: This represents the recessed bottom area touching the floor. It prevents guests' shoes from scuffing the upholstery. Operators usually finish kick bases in durable black vinyl, rubber, or metal.
Crumb Strip (Crumb Catcher): This is the essential gap built between the seat deck and the backrest. It allows crumbs to fall through to the floor. Busboys rely on this feature for rapid sanitation between seatings.
Top Cap: This forms the finished upper edge of the backrest. Designers often customize top caps using solid wood or laminate. Matching the top cap to your dining tables creates a cohesive visual aesthetic.
Back Pitch: This defines the angle of recline on the backrest. The industry standard dictates an 18-degree pitch. This specific angle optimizes dining comfort. It keeps guests upright enough to eat comfortably rather than lounging too far back.
Architectural planning requires strict adherence to evaluation criteria regarding capacity versus dimensions. You cannot simply squeeze extra guests into a curved space. The radius dictates the exact seating capacity. Providing baseline metrics prevents overcrowded tables and poor dining experiences.
Booth Category | Radius Dimension | Seating Capacity | Required Table Size |
|---|---|---|---|
Small Profile | 48 to 54 inches | Seats 4 adult guests | 36 to 42-inch round table |
Large Profile | 60 to 66 inches | Seats 5 to 6 adult guests | 48 to 54-inch round table |
Beyond the radius, you must account for depth and height hard numbers. Standard seat height universally sits at 18 inches from the floor. This aligns perfectly with standard 30-inch high dining tables. Overall depth typically ranges from 24 to 30 inches. This variance depends heavily on the backrest upholstery thickness. Deep button-tufting requires more structural foam, increasing the overall depth.
Overall height varies significantly based on your desired room vibe. A 36-inch height creates an open concept. It allows guests to see across the entire dining room. Alternatively, heights reaching 42 inches or more deliver high privacy. Tall backrests block sightlines and absorb ambient noise effectively.
You must strictly enforce the table overlap rule. The edge of your round table must overlap the front edge of the booth seat by 2 to 4 inches. This critical overlap ensures dining ergonomics. If the table sits too far away, guests must lean uncomfortably forward. This strains their backs and increases the likelihood of spilling food on their laps.
Curved seating offers advantages far beyond simple aesthetics. Operators leverage these specialized pieces to drive specific financial and operational outcomes. Understanding these benefits helps justify the initial investment required for custom furniture.
The "VIP" Perception: Curved seating naturally encloses a dining party. The sweeping backrest acts as a physical barrier. It creates significant acoustic dampening. Conversations stay contained within the curve. This creates a profound sense of exclusivity. Diners feel secluded from the bustling room. This heightened privacy easily justifies premium menu pricing and high-end tableside services.
Traffic Flow Management: Standard dining rooms often resemble rigid, grid-like cafeterias. You can use the curved exterior back of these booths to soften this visual impact. Designers strategically place them to break up long aisles. The sweeping curve naturally guides aisle traffic around the seating area. It creates organic, flowing walkways rather than harsh geometric paths.
Check Average Correlation: Corner and curved seating arrangements remain highly requested by patrons. Hosts frequently utilize these units for special occasions. This operational assumption leads to higher reservation retention. When larger parties secure a requested private spot, they tend to relax. This comfort often leads to longer dwell times. Longer visits consistently translate into higher check averages via extra appetizers, desserts, or specialty beverages. Operators trust Semi-Circular Restaurant Booths to elevate the overall profitability of a specific dining zone.
Integrating curved furniture into a square room requires strategic foresight. You must acknowledge the skeptic's view regarding spatial inefficiencies. If you push a curved backrest flat against a straight wall, you instantly create "dead space" behind the curve. Dust collects in these unreachable triangular voids. You lose valuable square footage.
To prevent spatial waste, designers rely on two optimal placements:

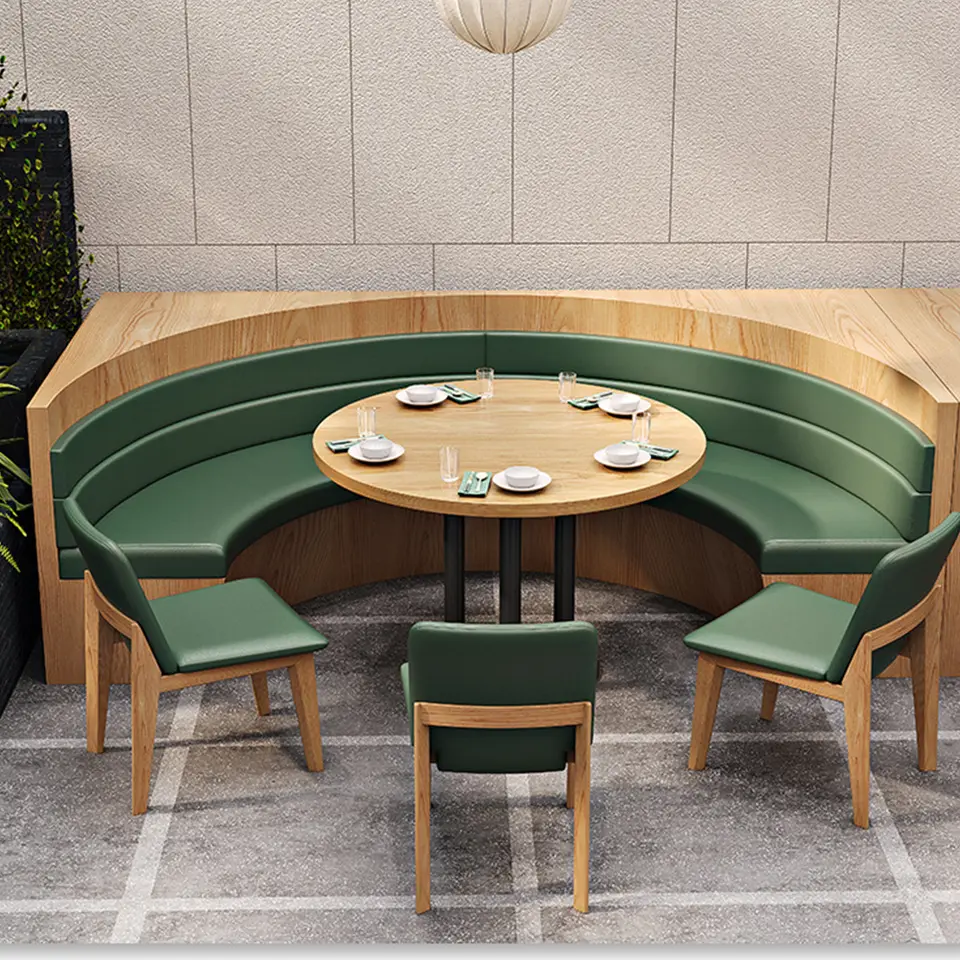

Corner Anchors: Tucking the units deeply into 90-degree room corners represents the most efficient layout. The corner perfectly swallows the curved back. It utilizes traditional dead space while providing sweeping views of the entire dining floor.
Center Islands: You can group two semi-circular units back-to-back. This creates a full circular focal point. Designers deploy this tactic in large, open dining rooms. It acts as a massive visual centerpiece without wasting wall space.
You must also highlight server clearance realities. Wide tables present a severe operational risk. A server must be able to reach the exact center of the table. They must also be able to hand a hot plate to the innermost guest. If the table is too massive, servers must lean awkwardly over other guests. Always test the server reach radius before finalizing your table sizes.
Do not ignore ADA compliance considerations. Curved units represent fixed seating. They cannot be easily moved to accommodate mobility aids. You must remind buyers to maintain a strict ratio of accessible, movable seating elsewhere in the floor plan. Balancing fixed luxury seating against flexible ADA-compliant tables ensures legal compliance and operational inclusivity.
Not every floor plan benefits from a sweeping radius. You need a clear decision framework to evaluate if this seating style matches your operational goals. Analyzing the physical footprint against your business model prevents costly design mistakes.
Criteria | Choose Linear / Banquette Seating | Choose Semi-Circular Seating |
|---|---|---|
Primary Goal | Maximizing total headcount per square foot. | Creating architectural focal points. |
Room Shape | Narrow, long, or tightly constrained footprints. | Deep, square, or highly expansive dimensions. |
Dining Concept | Fast-casual, rapid table turnover models. | High-end group dining, prolonged dwell times. |
You must weigh cost versus scalability. Curved frames demand intensive manual labor during manufacturing. Custom upholstery patterns require more material and precision than straight runs. Therefore, these units require higher initial capital expenditure than standard straight benches. You should deploy them selectively rather than outfitting an entire room.
Before proceeding, take specific next-step actions. Advice your design team to request exact CAD blocks from manufacturers. Drop these digital files into your architectural software. Next, physically tape the radius on your actual floor. Walk around it. Test the dimensions against existing traffic aisles. You must ensure waitstaff can comfortably pass behind the backrest. Evaluating Semi-Circular Commercial Restaurant Booths in physical space prevents spatial choke points.
Semi-circular configurations serve as a highly specialized tool for enhancing both guest experience and room aesthetics. They break the monotony of grid layouts, deliver unmatched acoustic privacy, and naturally elevate the perceived value of the meal. However, their large footprint demands careful spatial planning and precise table pairing. We advise operators to pilot one or two units in corner placements first. Observe how your guests and servers interact with the curves. Mastering the corner setup allows you to confidently expand into back-to-back island configurations in the future.
A: U-shaped booths utilize straight bench sections joined together by harsh 90-degree interior corners. They form a rigid box shape. In contrast, semi-circular units feature one continuous, sweeping curve spanning exactly 180 degrees. This smooth curve eliminates hard corners entirely.
A: You must specify round or customized D-shape tables. Furthermore, heavy-duty pedestal bases are mandatory. Using a traditional four-legged table traps guests' legs, making entry and exit incredibly difficult within the curved footprint.
A: We recommend maintaining a minimum of 36 inches of clearance for standard foot traffic flow. However, you should increase this gap to 44 inches to accommodate wheelchair access or to support high-traffic server routes efficiently.
